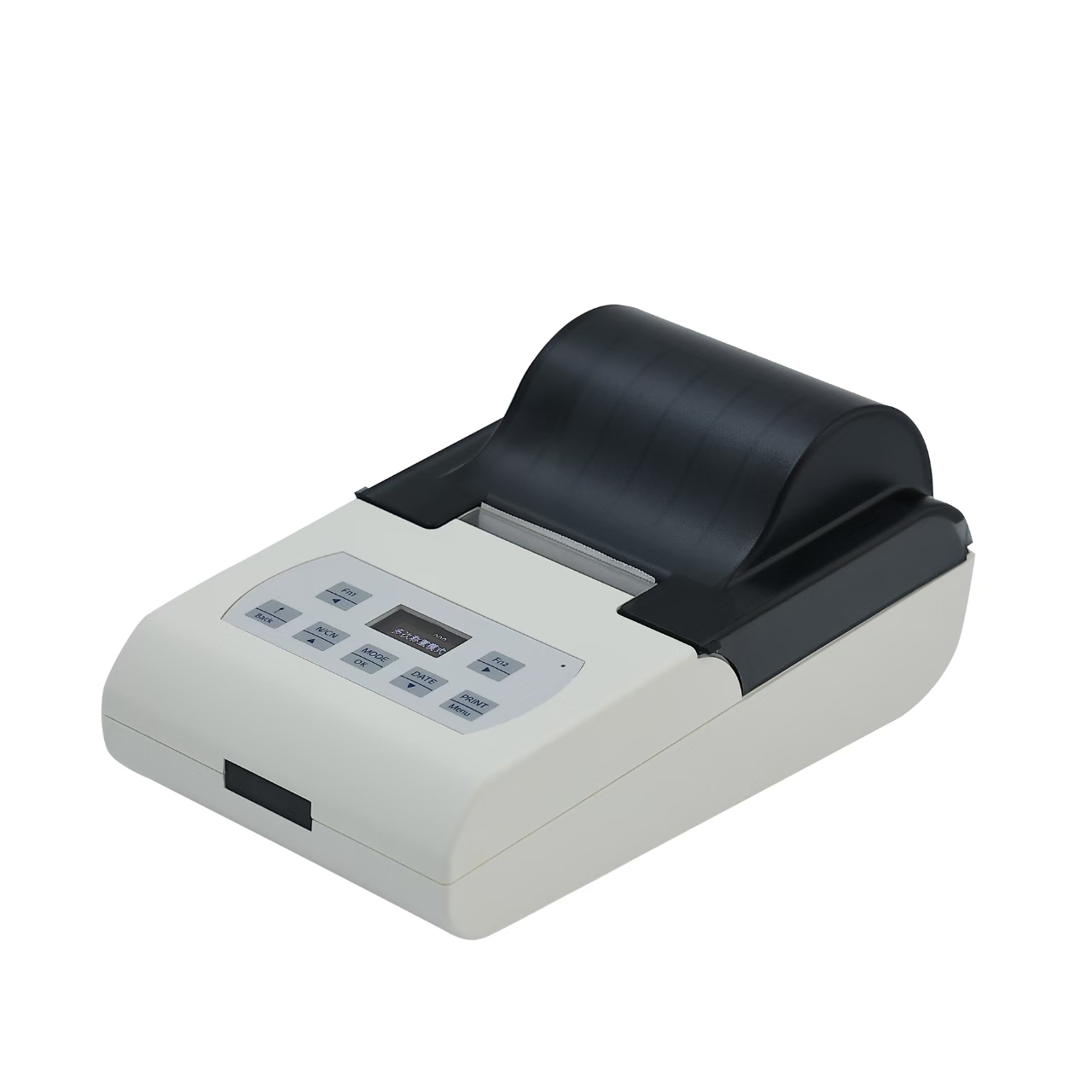

天平数据打印机

发布日期：2025-06-09

功能与特点

●针式打印，使用色带和普通纸，报告可长期保存。
●报告符合GLP/GMP　规范要求。
●内置时钟，即使衡器没有时钟，也可打印日期。
●二级权限管理：管理员权限和用户权限，拒绝非授权修改。
●样品名称/批号打印功能，支持中文打印。
●统计计算：可最多对999份数据进行数学统计计算，输出平均值、标准偏差、偏差系　数、总和、最大值、最小值、差值等结果，计算过程使用64位双精度，没有可视误差。
●皮重、毛重、净重打印功能。
●可编辑的报头和报尾：报头包括：厂商信息、仪器型号、序列号、样品名称/批号、日期/ 时间等；报尾包括：结束时间/日期、签名等，报头和报尾的每一项均可单独打开或关闭。
●自定义样品名称、批号等输入信息，输入信息可被打印在报头、或数据前，也可以手动打印。

特性参数

打印方式：针式点阵打印
拷贝能力：1(原件)+1拷贝
打印纸：57mm 宽度，外径最大中50mm, 　内径φ12.5mm, 　纸质53~68g/m2 普通纸(非热敏型)。
色带：EPSON公司生产的ERC-09或ERC-22
打印字符：ASCI字符；简体一、二级汉字。
通信接口：1个BS232CDB9公头(9针):1个USB2.0设备
电源：直流12V/1.5A或12V/2A,
平均工作功耗：8W待机功耗(不打印):0.5W
工作环境：操作温度0~50℃℃相对湿度10~80%

function and characteristic

● Dot matrix printing, using ribbons and ordinary paper, enables reports to be saved for a relatively long time.
● The report complies with the requirements of GLP/GMP standards.
● Built-in clock, even if the weighing instrument doesnt have a clock, the date can still be printed.
● Secondary permission management: Administrator permissions and user permissions, and unauthorized
modifications are rejected.
● Sample name/batch number printing function, supporting Chinese printing.
● Statistical calculation: It can perform mathematical statistical calculations on up to 999 sets of data, outputting the
average value, standard deviation,The results such as the deviation series number, sum, maximum value, minimum value,
and difference are calculatedusing 64-bit double-precision.There is no visual error.
● Tare weight, gross weight and net weight printing function.
● Editable header and header: The header includes: manufacturer information, instrument model, serial number,
sample name/batchNumber, date/time, etc. The closing remarks should include: end time/date, signature, etc. Any
item in the opening or closingremarks is acceptableTurn it on or off alone.
● Customize the sample name, batch number and other input information. The
input information can be printed in the header or
before the data, or it is also possiblePrint it manually.

characteristic parameter

Printing method: Dot matrix dot matrix printing
Copy capacity: 1(original)+1 copy
Printing paper: 57mm width, maximum outer diameter of 50mm
Inner diameter φ12.5mm, paper 53-68g/m2 common
Paper (non-heat-sensitive type).
Ribbon: ERC-09 or ERC-22 produced by EPSON Company
Print character: ASCI character; Simplified first and second-level
Chinese characters.Communication interface: 1 BS232CDB9 male
connector (9 pins):One USB2.0 device
Power supply: DC 12V/1.5A or 12V/2A
Average operating power consumption: 8W nStandby power consumption
(without printing):0.5W
Working environment: Operating temperature 0-50℃, relative humidity 10-80%

功能Function 型号Type number	100	110
128×64点阵OLED显示屏 128×64 dot matrix OLED display		√
时间日期打印（内置时钟） Time and date printing (with built-in clock)	√	√
原始数据打印模式 Original data printing mode	√	√
称重打印模式 Weighing and printing mode	√	√
统计计算模式 Statistical computing model		√
